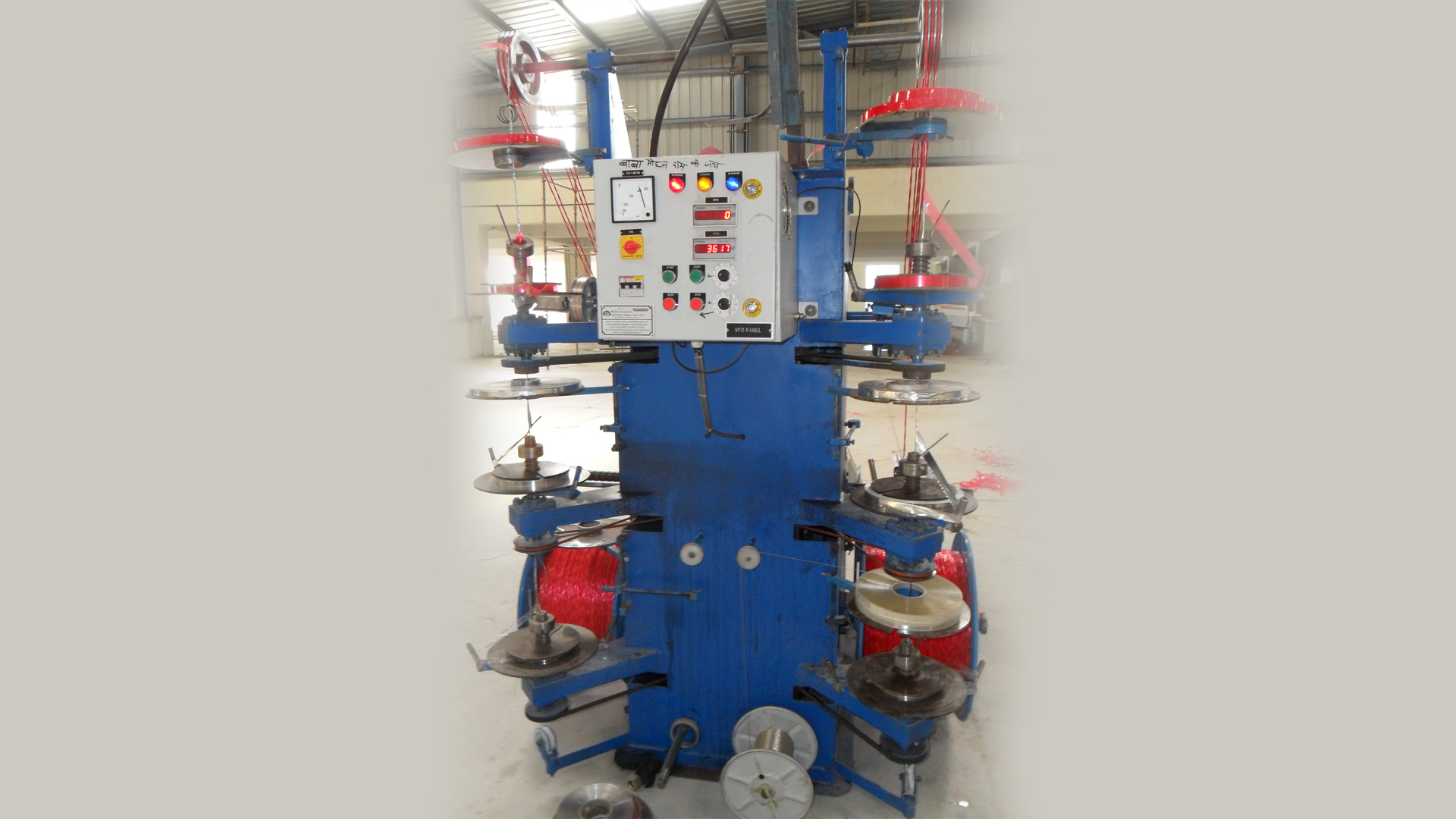

Vertical Taping Machine

Vertical Tapping Machines

JASMINDER ENGINEERING WORKS provide Vertical Tapping Machines are make the Punch tape, Aluminum tape, Mica tape wrap the inner wire. The two rotating direction is same and reverse; the machine can do single, double & triple tapping. The vertical tap machine is for producing Instrumentation Cables, Communication cables, Control cables and Anti-fire cables etc.

Main Features

Clockwise and Anti-Clockwise
High Efficiency and Speed
MMI/PLC Equipped (optional)
Tension control automatically
Type Vertical/Horizontal
Bobbin Size 500/630/800
RPM 1500
Motor 2 HP AC
Gear-Box 2 Nos.
Taping Pitch 0.5mm to 20mm
Range of Wire 0.5mm to 10mm
